High precision Alumina for Lithium ionsbattery diaphragm

.

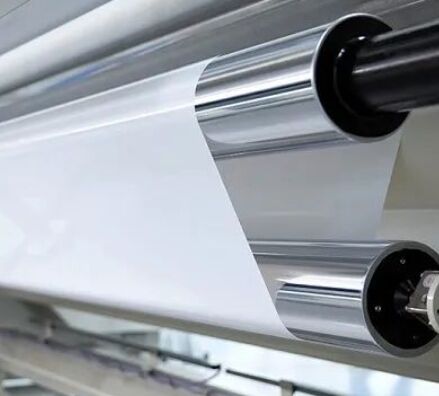

  The lithium-ion battery separator is a crucial component of lithium-ion batteries and the most technically challenging key internal layer in the lithium-ion battery industry chain. Its primary function is to separate the positive and negative electrodes, preventing short circuits caused by direct contact between the two poles. Additionally, it enables the passage of electrolyte ions.

【Application】

It is mainly used for the coating material of positive and negative pole diaphragm of lithium battery, which is beneficial to the stability of the battery.

It is suitable for Lithium ion battery separator,and the battery can be used for electronic car, electronic intelligent products and energy storage products.

【Specification】

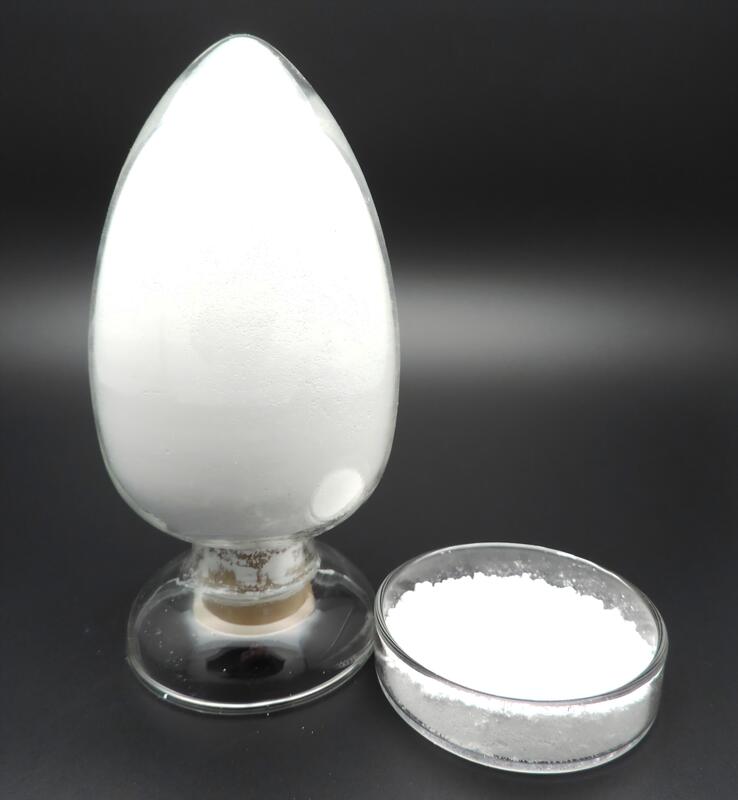

1. Chemical properties: Al₂O₃>99.9%
2. Color:white
3.PSD: D50=0.5-0.8um,D99<4um

【Product features】


The presence of the alumina can significantly improve the physical and chemical properties of battery separators. The alumina coating layer may reduce or prevent dendrite puncture, lithium plating and separator shrinkage during over-heating, hence significantly increasing safety performance for a lithium ion battery

The alumina ceramic coating provides a skeleton for the flexible seperator, improves the wear resistance of the seperator, prevents lithium dendrite from piercing, reduces heat shrinkage, improves temperature resistance, and the pores are stable with temperature, which can effectively improve the safety performance of the battery.

【Packing】 25kgs/poly-drum ,500kgs/pallet.

1 Q: How about the packing?
A:Usually we provide the packing as 50 kg Iron Drum or 25 plastic Drum ,if you have special requirements on them, we will according to you.


2. Q:Do you provide equipment operation training?
A:Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers

3 Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
If you have other questions, please feel free to contact us.


4.Q:What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , and Origin certificate. If your markets have any special requirements, let us know.

  Shanghai Gona Industrial Co.Ltd is founded in 2006, and located in Songjiang Industrial District.Now we have three production bases and one R & D Center.One is located in Baotou city inner Mongolia which produces cerium oxide polishing powder;One is located in Zhejiang which produces alumina for Li+ battery separator.Another one and the R&D center are located in Shanghai.
